Wilbers Shocks on BMW R1200C

This is a partially complete page for the installation of Wilbers shocks on a BMW R1200C.

I'll put more text on the page later, but I wanted to get the photos prepared first.

DSCN7609.jpg  DSCN7598.jpg  DSCN7603.jpg

The Run-N-Lites company is the official distributor in the USA for Wilbers suspension components.

I brought my bike to their shop near Englishtown NJ, where Klaus did the installation.

The installation was pretty straightforward, and all the new parts fit properly.

A few notes:

  • The machining, fit and finish on the new components appears to be first rate
  • The standard color for the springs is blue, but red is also available from Wilbers, and other colors can be arranged.  The blue in the photos varies a bit from picture to picture (the shocks photograph a bit turquoise).  However it's actually very rich blue, close to the blue in the BMW badge on the side of the gas tank. So it is a good combination on my black cruiser.
  • Klaus did a very conscientious job with the installation, paying attention to every detail.  Before ordering, he asked my weight, and how much luggage and passengers weighed.  He took "sag" measurements both before and after the installation.
  • The hydraulic compression damper for the rear shock sits upon a model specific bracket machined to attach at one of the rear fender mounting points.
  • There are A LOT of adjustments available, so it will take a while for me to tune in the suspension for one and two up riding.
    • Front shock has preload, and rebound damping adjustments
    • Rear shock has hydraulic preload, rebound damping, and both high and low speed compression damping adjustments.

More text will follow later... enjoy the photos.

Model numbers and some notes from Klaus are posted below the photos

Click on the small photos for larger views

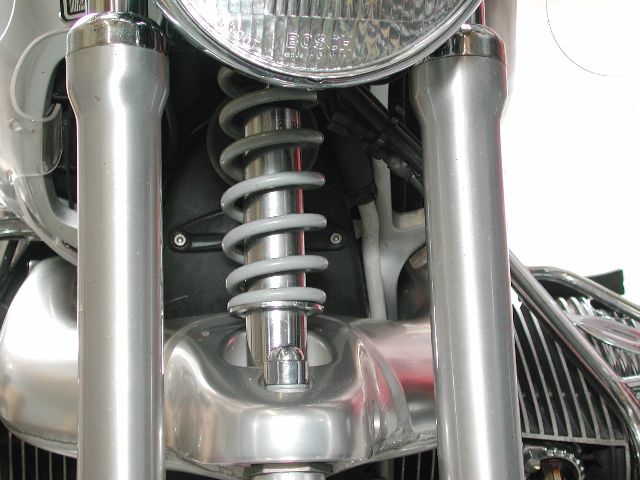

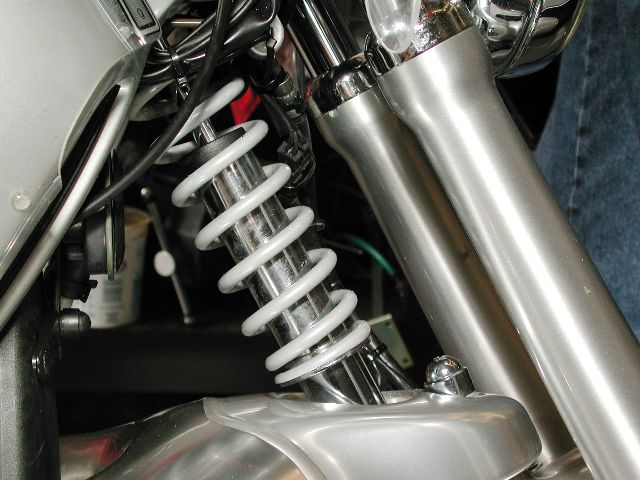

Original front shock
DSCN7523.jpg DSCN7524.jpg

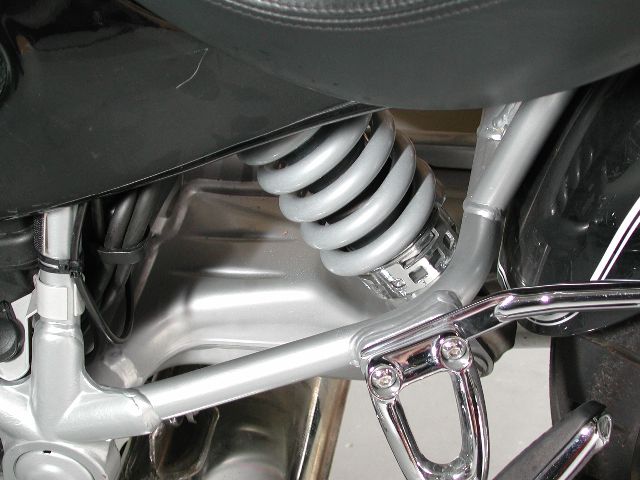

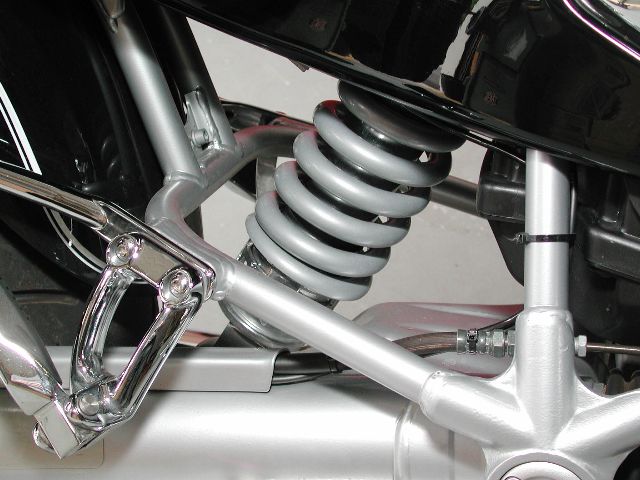

Original rear shock
DSCN7526.jpg DSCN7530.jpg
DSCN7531.jpg DSCN7532.jpg

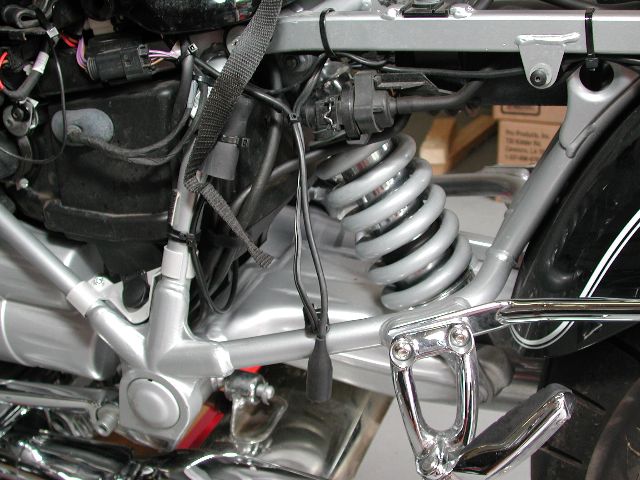

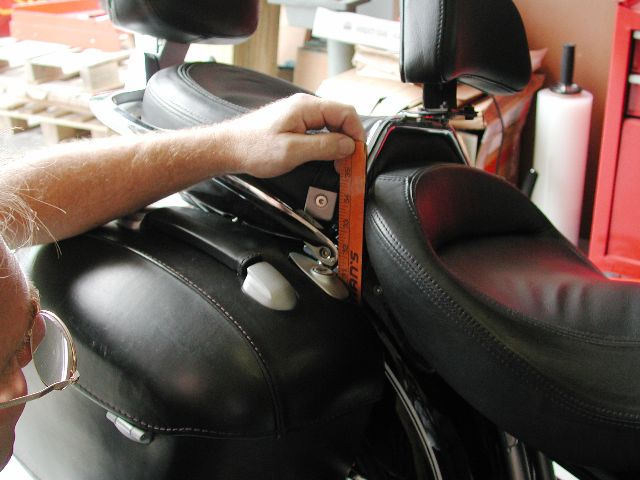

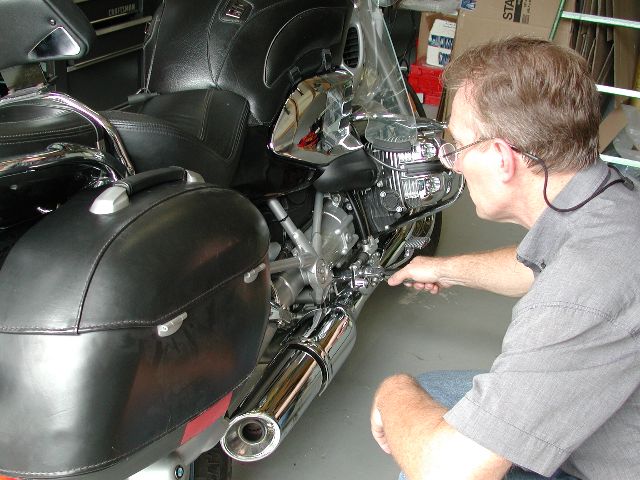

Determining a place to measure "sag"

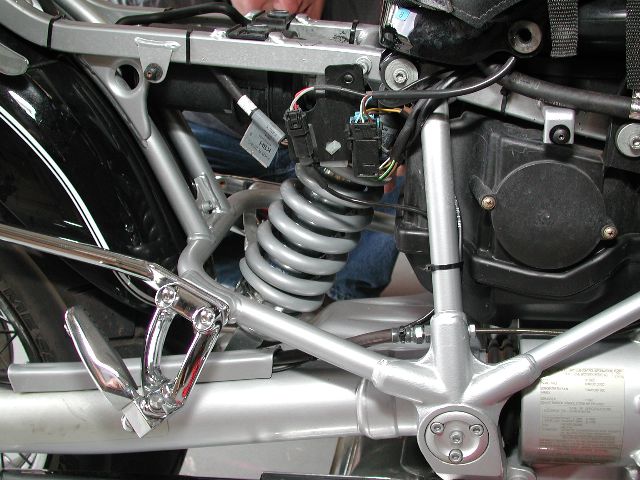

Side panels removed
DSCN7536.jpg DSCN7539.jpg

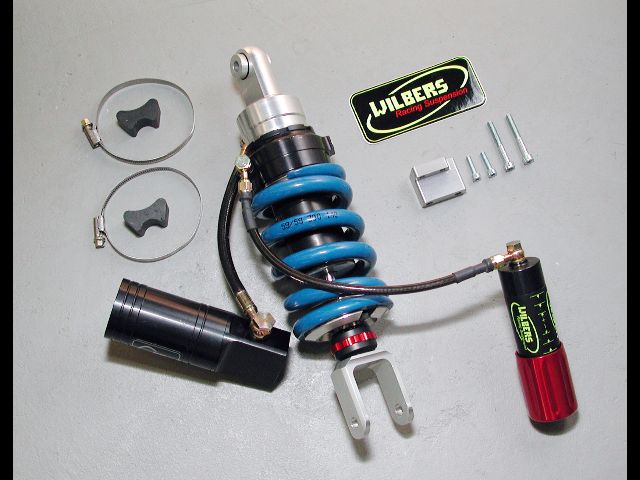

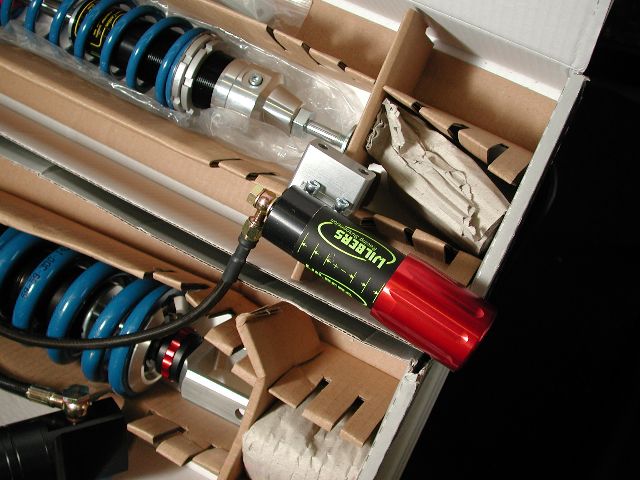

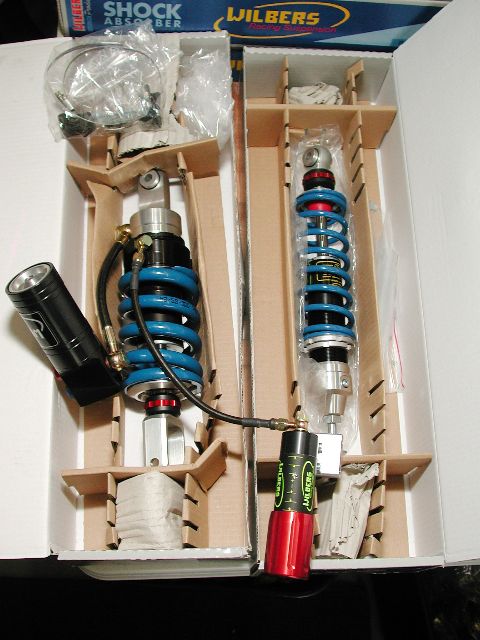

Parts as ordered

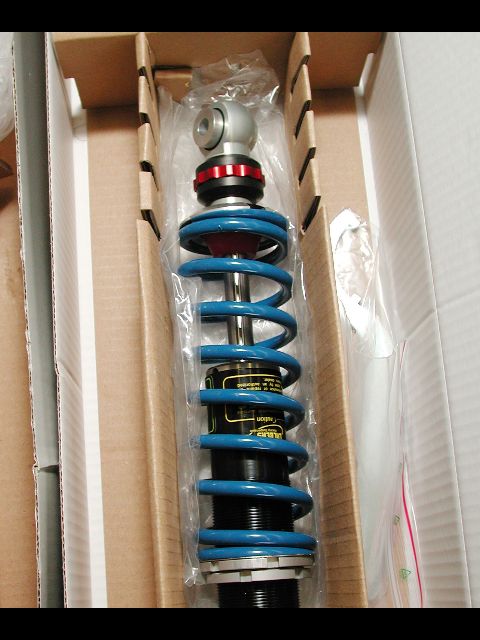

DSCN7541.jpg DSCN7542.jpg DSCN7543.jpg DSCN7550.jpg

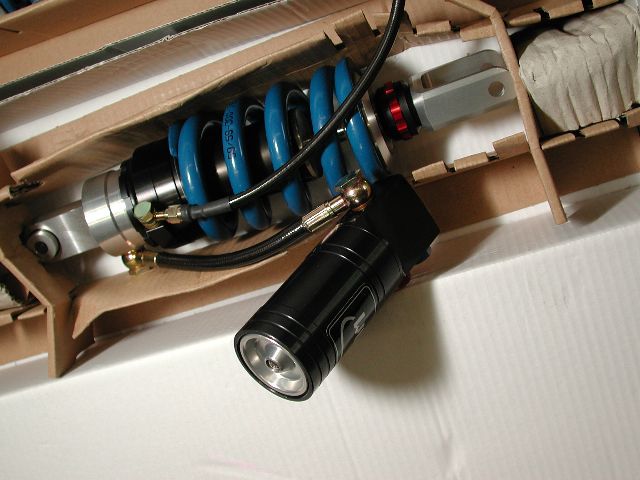

Rear shock pieces

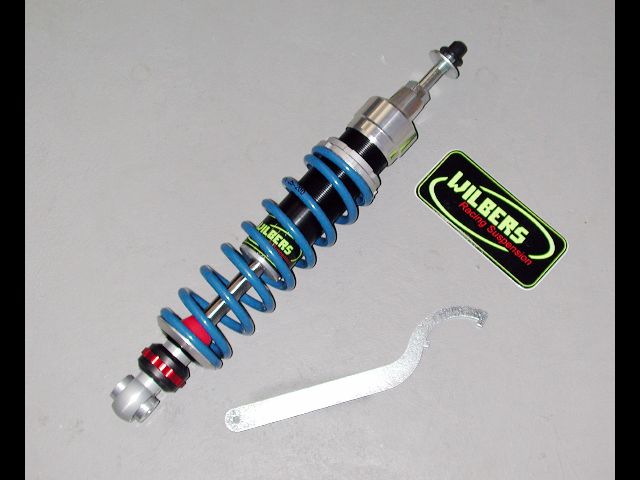

Front shock pieces

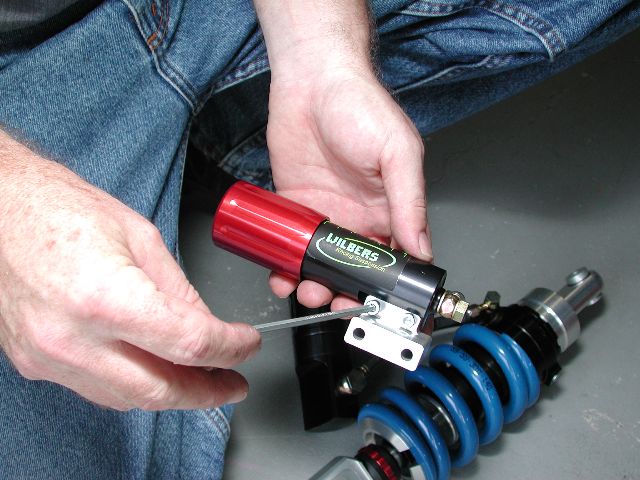

Attaching the cruiser specific fender bracket

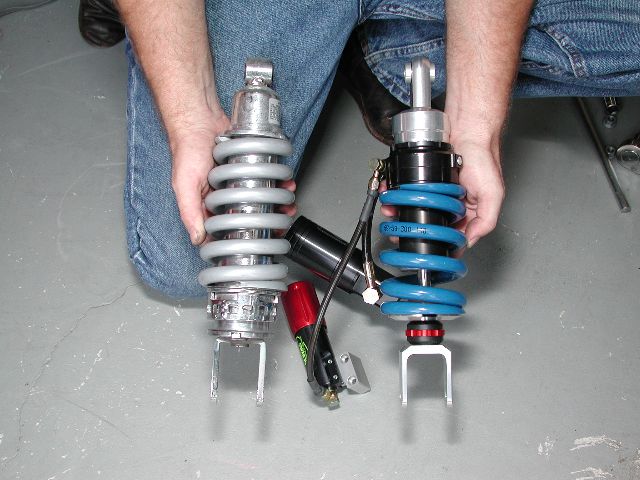

Comparing stock to Wilbers

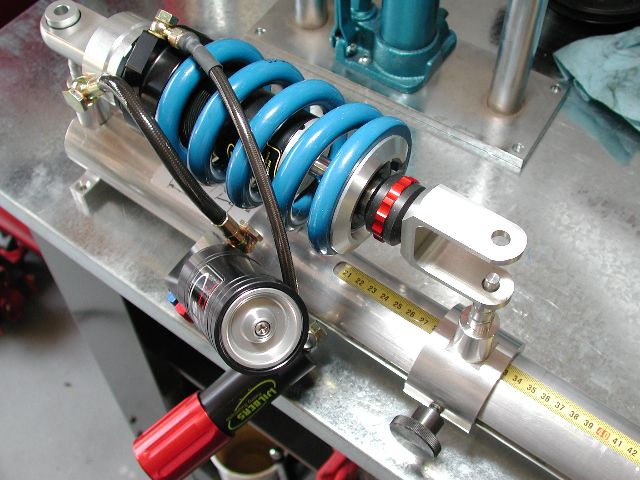

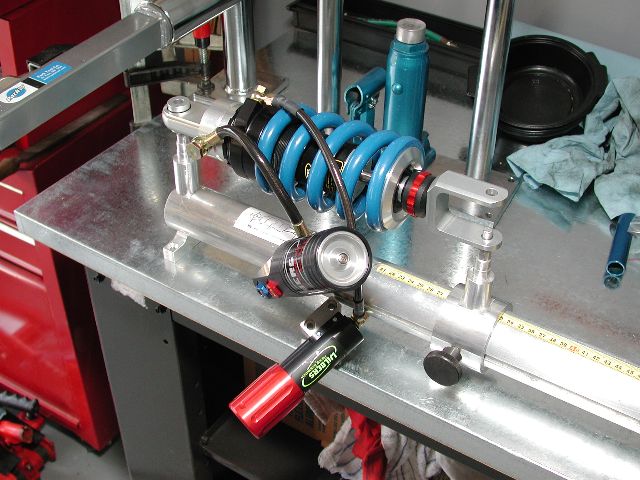

Checking overall length
DSCN7561.jpg DSCN7562.jpg
Installing the rear shock

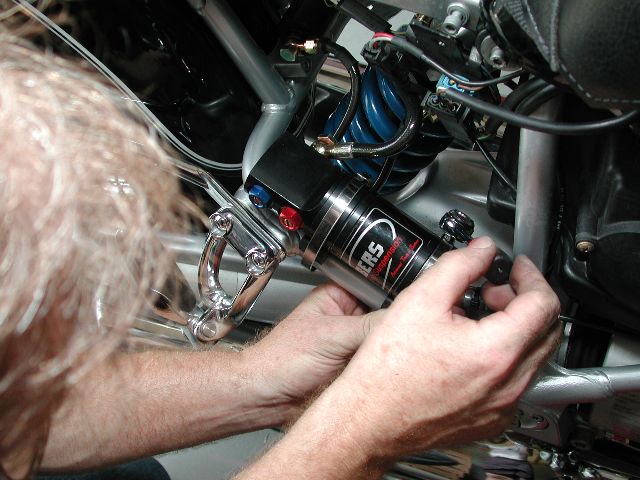

Shock and hydraulic preload adjuster installed

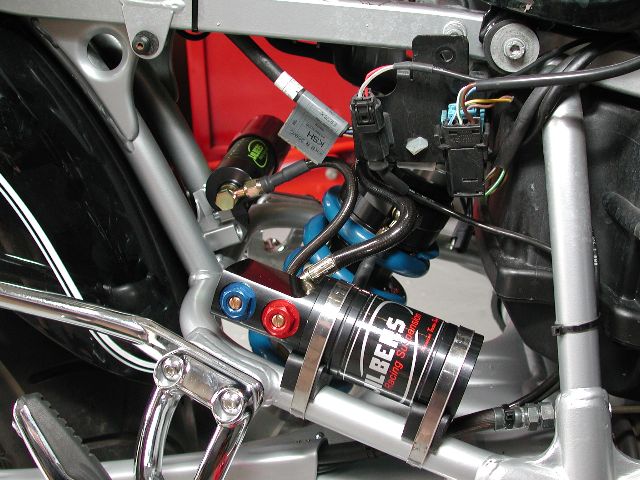

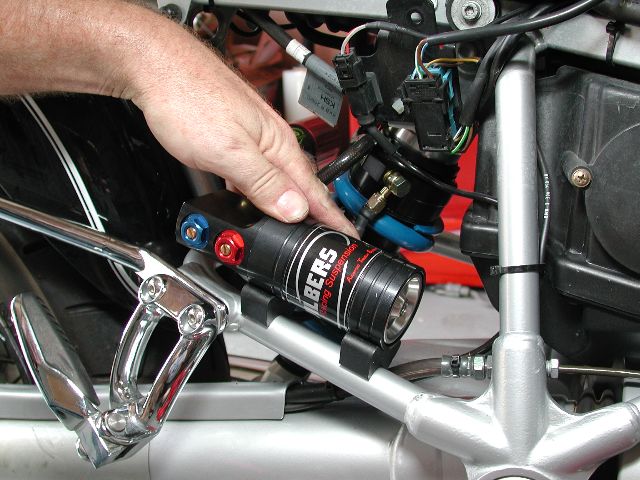

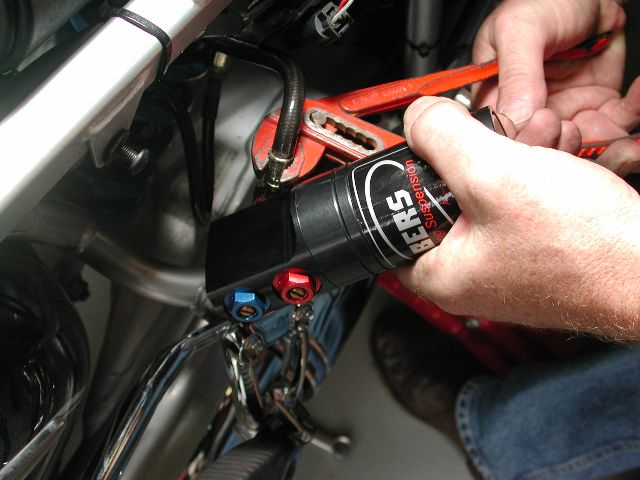

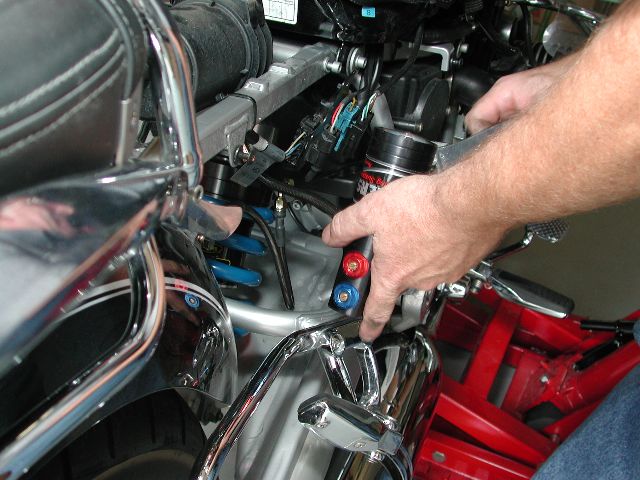

Fitting the compression damper reservior
Adjusting the angle of the high pressure hose for best fit
Mounting the reservior
Tightening the clamps
DSCN7576.jpg DSCN7577.jpg

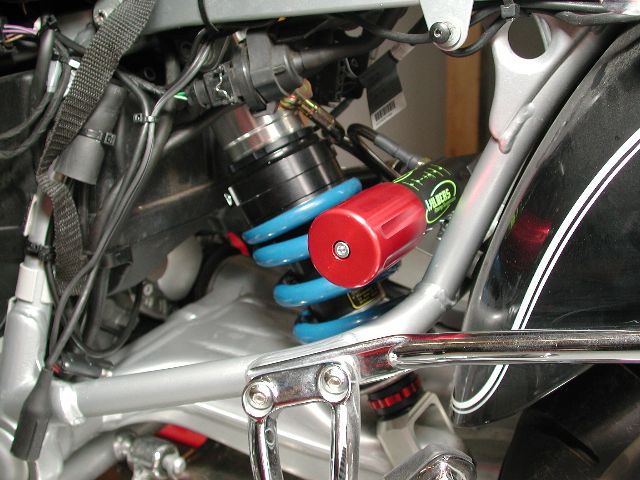

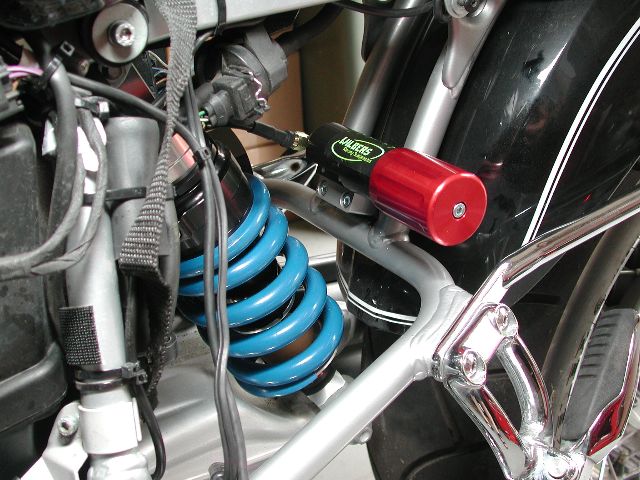

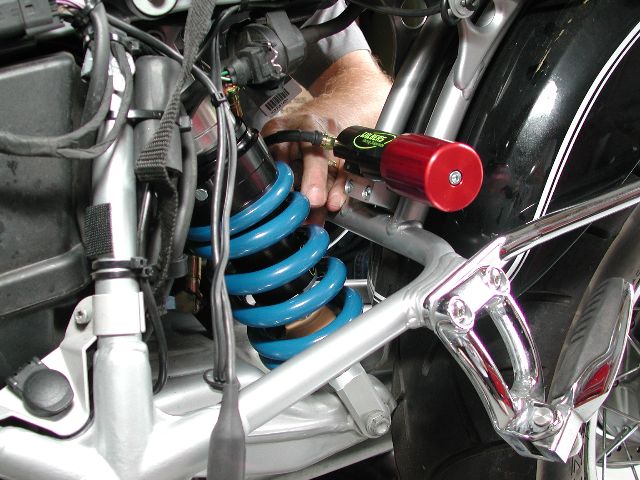

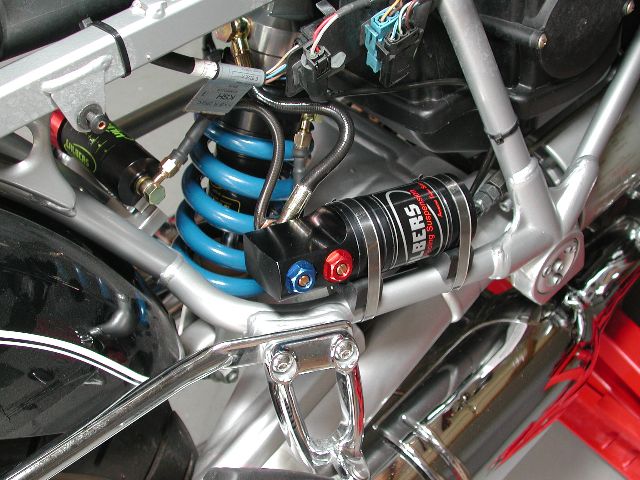

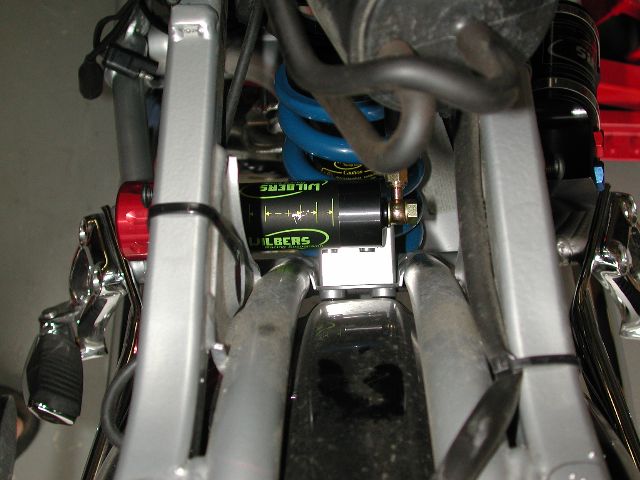

Reservior installed

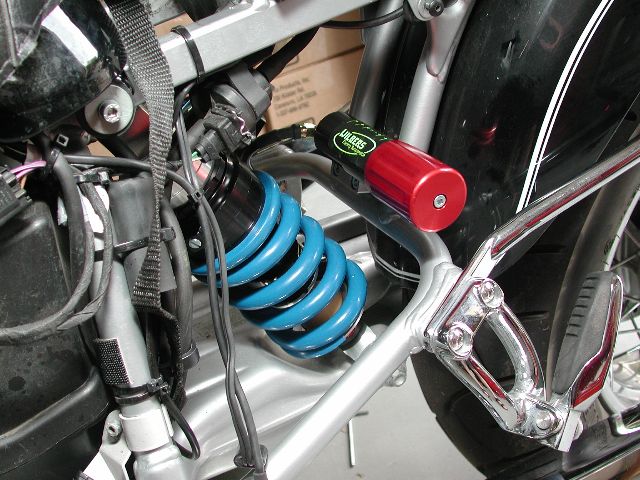

DSCN7578.jpg DSCN7579.jpg DSCN7581.jpg
Component mounts via a custome spacer bracket

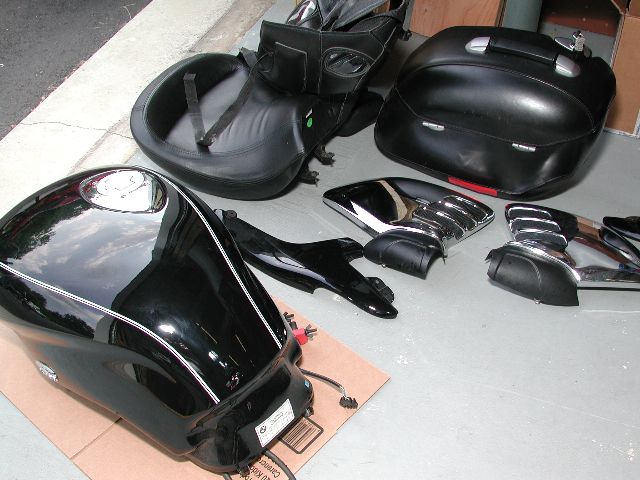

Parts removed for the installation

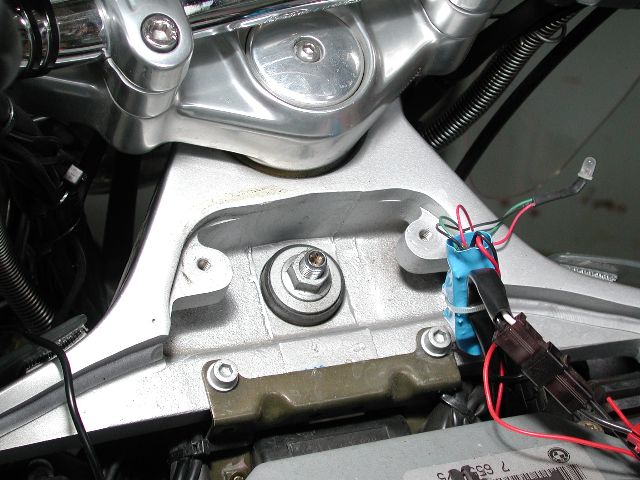

Top nut of front shock

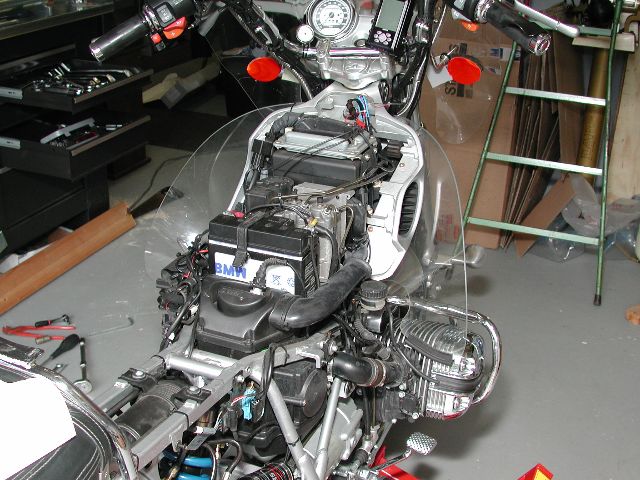

Removed tank to give better access to shock removal

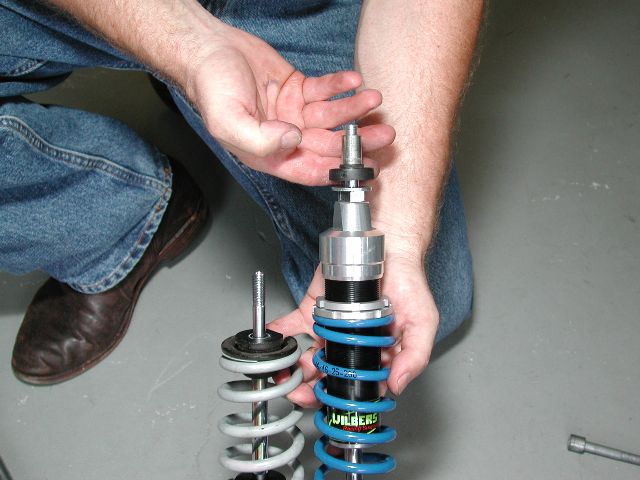

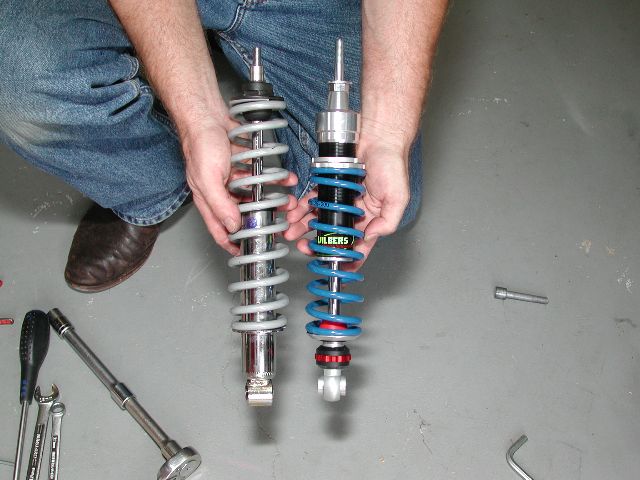

Comparing stock with new shock

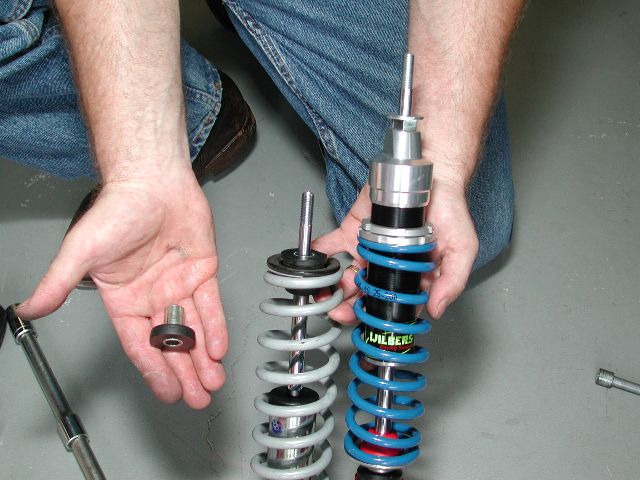

Sleeve gets moved from stock to new shock
DSCN7591.jpg DSCN7592.jpg

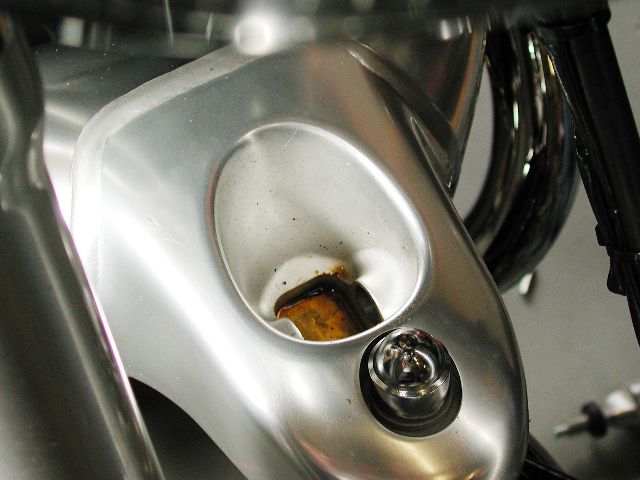

When old shock was removed there was a puddle of oil... source not yet determined

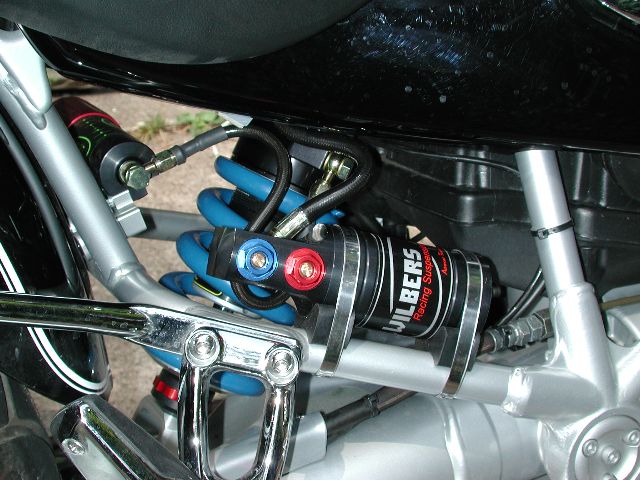

Finished installation photos

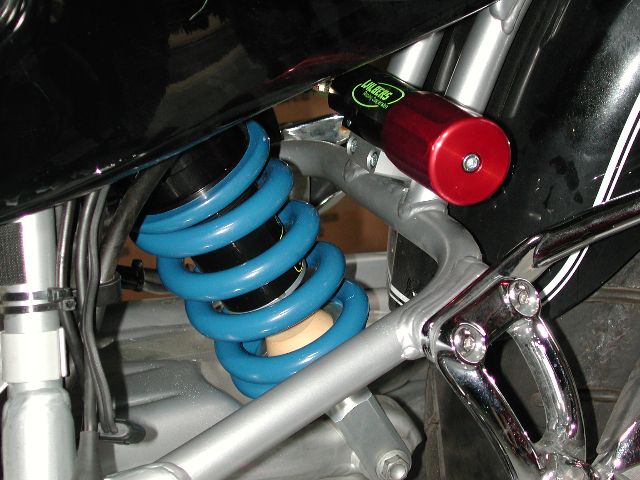

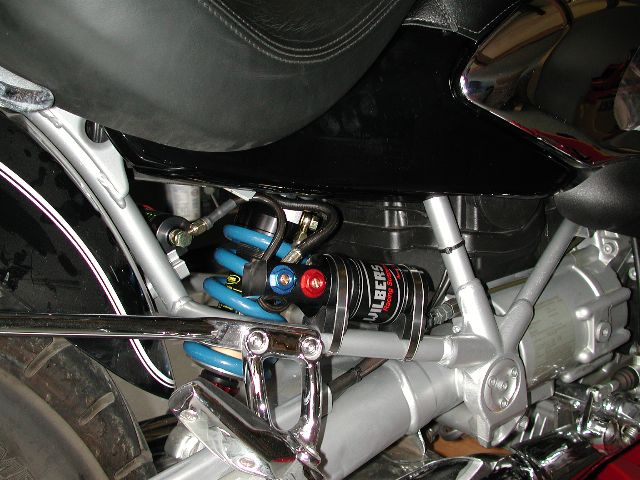

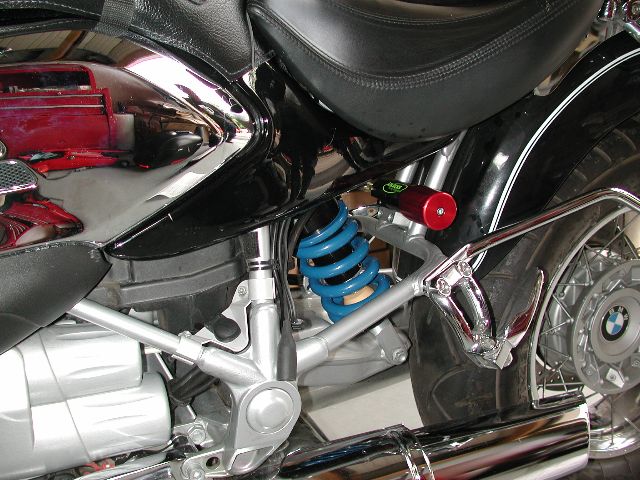

DSCN7600.jpg DSCN7601.jpg

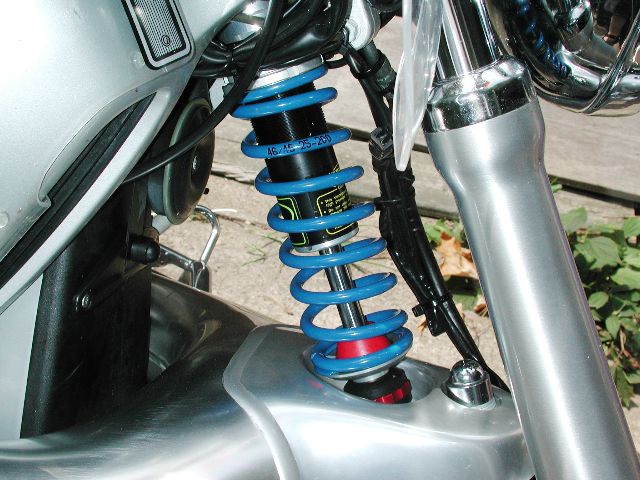

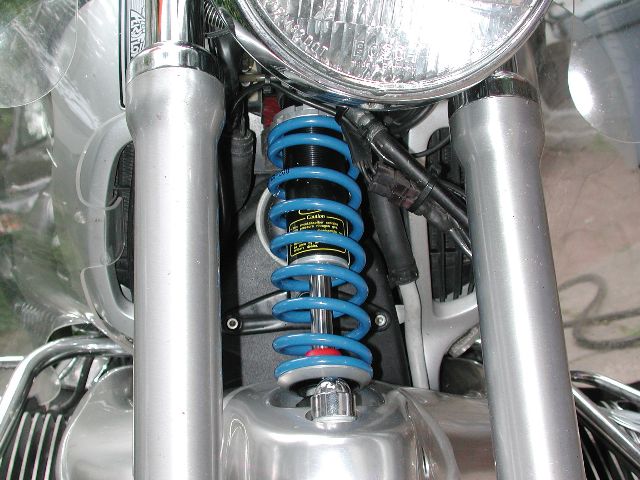

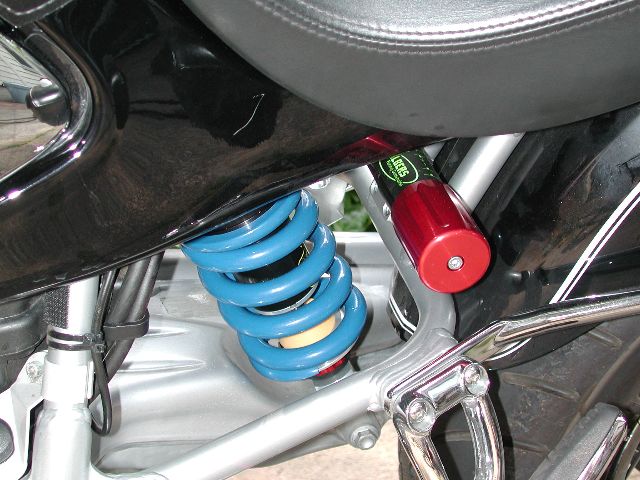

 DSCN7603.jpg  DSCN7605.jpg  DSCN7609.jpg  DSCN7610.jpg

Model options for the R1200C

  • Front: only one choice
    • Model 630-013-00
      • Shock has adjustable rebound damping (22 clicks) and infinite variable adjustment for spring pre-load (C-spanner or hook-wrench)
      • Choice of BLUE (standard) or RED color spring.
      • Retail price: $ 417.00
      • Shown in photos above
  • Rear:  two choices:
    • Model 640-013-00
      • Shock has adjustable rebound damping (22 clicks) and infinite variable adjustment for spring pre-load (C-spanner or hook-wrench)
      • Choice of BLUE (standard) or RED color spring.
      • Retail price: $ 417.00
      • Optional hydraulic pre-load adjuster # 625 @ $ 196.00 can be added.
    • Model 641-013-00
      • This model has adjustable rebound (22 clicks) as well as compression damping.
        The compression damping has two levels, High and Low speed (22 clicks each) and infinite variable adjustment for spring pre-load (C-spanner or hook-wrench)
      • Choice of BLUE (standard) or RED color spring.
      • Retail price: $ 627.00
      • Optional hydraulic pre-load adjuster # 625 @ $ 196.00 can be added.
      • Shown in photos above with hydraulic preload adjuster.
  • Ride height
    • Option # 629, the infinite variable ride height adjuster (+/- 1/2" seat height change) can be added to any shock model @ $ 66.00.

Other Notes

The R 1200 CL model bike has not been investigated by the WILBERS Factory yet in regards to which shock model can be used.

Each shock is built individually to the riders specification. They can be built to permanently lower the riding height in approx. steps of 1/2", 1" and 1 1/2" , at no additional cost.

With the order and selection of shock model and option, it is necessary to supply the "riding weight", as well as weight of possible passenger and luggage and perhaps tongue weight of trailer if so equipped, and riding style as to "touring", "aggressive sport riding" or "scraping pegs and dragging knees".
